Bar Type
  • In stock, ready to ship
  • Backordered, shipping soon
We ship to anywhere in Canada.
Regular price$859.99
/
Shipping calculated at checkout.
  • 2-YEAR WARRANTY

PRODUCT FEATURES

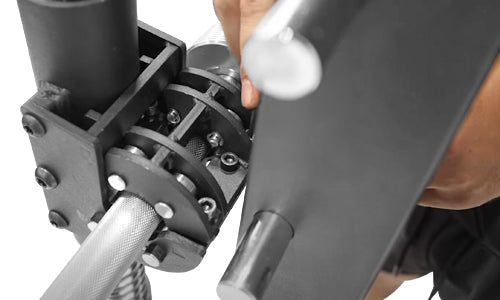

BRING YOUR OWN BAR — OR DON’T

BRING YOUR OWN BAR — OR DON’T

Choose your weapon. Grab the dedicated Smith Bar for an easy, all-in-one setup that’s ready to lift straight out of the box. Or go full BYOB (Bring Your Own Barbell) mode and drop your favorite bar into the clamshell brackets — it’s like building your own gaming PC, but for badass grown-ups who lift heavy sh*t.

TINY, SPACE-SAVING FOOTPRINT

TINY, SPACE-SAVING FOOTPRINT

No need for a standalone strength machine — this attachment mounts directly inside your rack for massive space savings. Prefer the outside? It sits just 10" off your uprights, freeing up even more room for what really matters — perfecting your front double-biceps pose.

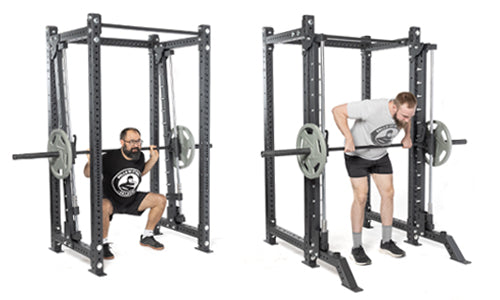

MAXIMIZE MUSCLE & STRENGTH

MAXIMIZE MUSCLE & STRENGTH

Thanks to its fixed bar path, you won’t waste a single ounce of energy stabilizing the bar — meaning you can lift heavier and build more muscle. The easy-to-use safety catches let you push to failure confidently, no spotter required. That’s right — no more calling Mom for help.

PRODUCT DETAILS

BREAKING NEWS: the stigma against Smith machines is officially over.
Meet the Smith Machine Rack Attachment — the ultimate size-and-strength booster for your power rack, all in an ultra-compact footprint.
Now, if only mullets would make a comeback…

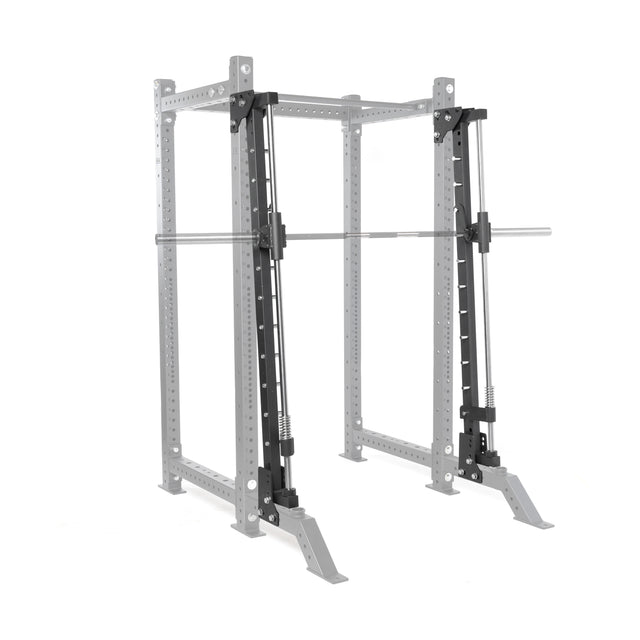

This versatile attachment transforms your 3” x 3” power rack into a full-blown bodybuilding station — without the cost or space demands of a standalone Smith machine.

Bring your own 25–30 mm barbell (BYOB) for a heavier starting weight, or grab the optional 36 lb hollow Smith bar for a one-and-done setup that’s smooth, stable, and easy to assemble. With a 600 lb total capacity, this unit is ready to match your biggest goals.

Mount it inside your rack for a zero-footprint upgrade or outside your rack, extending only 10 inches from your uprights.
Switch easily between straight and angled bar paths — the adjustable brackets make every lift feel natural for your body mechanics.

Crush all the essentials: squats, presses, rows, and Bulgarian split squats (yes, they’re back again).
But don’t stop there — use it for heavy negatives, isolation work, or single-leg RDLs to rehab and rebuild like a pro.

Recommended Set-Up:

  • Mount the upper brackets to the top of your uprights.

  • Mount the lower brackets to your crossmembers (inside) or front stabilizers (outside).

  • Brackets can attach directly to uprights, but note: dropping the bar could permanently damage the unit.

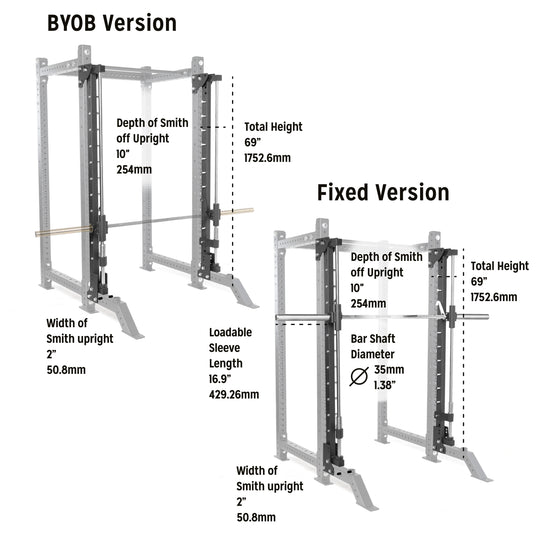

PRODUCT SPECS

Product specification image

General

Height
69" / 1,753mm
Depth (Straight Mount)
10" / 254mm
Depth (Angled Mount)
17" / 432mm
Uprights Width
2" / 51mm

Smith Bar

Total Length
85.38" / 2,169mm
Loadable Sleeve Length
16.9" / 429mm
Shaft Diameter
1.38" / 35mm
Knurling
Light
Coating
Chrome
Starting (Empty Bar) Weight
36.4lbs / 16.5kg

BYOB System

Bar Diameter Required
25mm (min) to 30mm (max)
Weight
15.4lbs / 7kg (Without Bar Mounted)

Specifics

Bearing Type
Linear Ball Bearings
Frame Coating
Powder Coat
Mounting Hardware
Included (5/8" bolts)
Assembly Hardware
Only an Allen/Hex Key is Included
Total Weight Capacity
600lbs / 272kg
Warranty
Limited Lifetime (Frame / 3 Years (Parts)
